StarFive VisionFive 2
Description about the StarFive VisionFive 2
Introduction
The StarFive VisionFive 2 is a SBC with a StarFive JH7110 64bit SoC. Its proposed with either 2GB, 4GB or 8GB of LPDDR4 RAM. It also have an integrated GPU capable of outputting in 4k@60hz via its HDMI 2.0 port.
VisionFive 2 Board

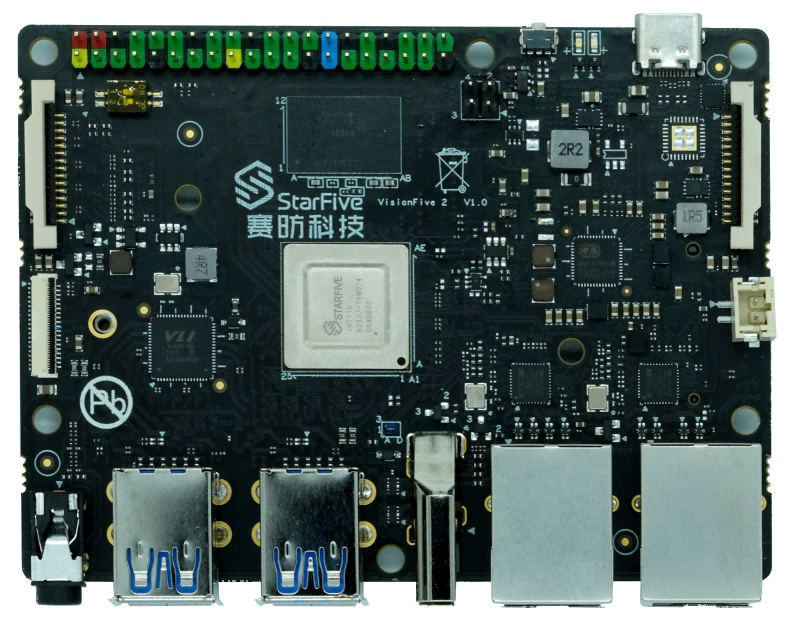

The StarFive VisionFive 2 SBC
| Pioneer Board | Specification |
|---|---|
| Processor | StarFive JH7110 64bit SoC with RV64GC, up to 1.5GHz |
| Memory | LPDDR4 2GB/4GB/8GB |
| Storage | 1x Flash for Uboot |
| 1x micro SD card | |
| 1x M.2 M-Key | |
| Multimedia | Camera with MIPI CS!, up to 4k@30fps |
| H.264 & H.265 4k@60fps Decoding | |
| H.265 1080p@30fps Encoding | |
| JPEG encoder/decoder | |
| 1/4-pole stereo audio | |
| HDMI | |
| Ethernet | 2x RJ45 Gigabit |
| USB | 2x USB2.0 + 2x USB3.0 |
| Video Output | HDMI 2.0 |
| MIPI-DSI | |
| Power | 5V DC via USB-C with PD up to 30W Power |
| GPIO Power in 5V DC via GPIO header (minimum 3A+) | |
| PoE | |
| GPIO | 40 pin GPIO header |
| Size | 100 x 72mm |
| Compliance | RoHS, FCC, CE |
| Button | Reset Button |
| Others | Debug Pin Headers |
Diagrams

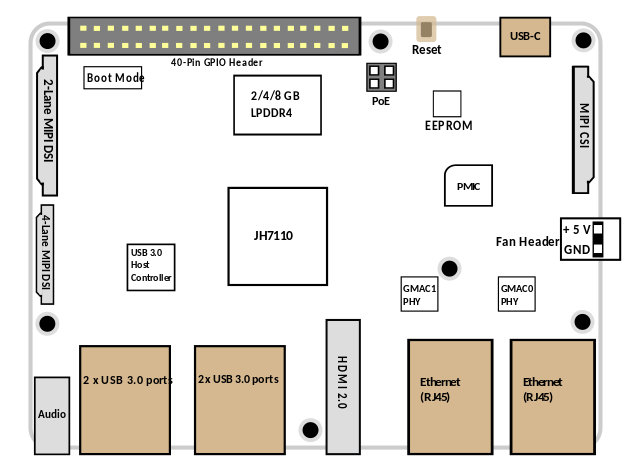

Diagram of the top view of the board
Diagram of the bottom view of the board
Support
For support please see the documentation section of the StarFive website and post questions to the StarFive Community. You can find the wiki here.
